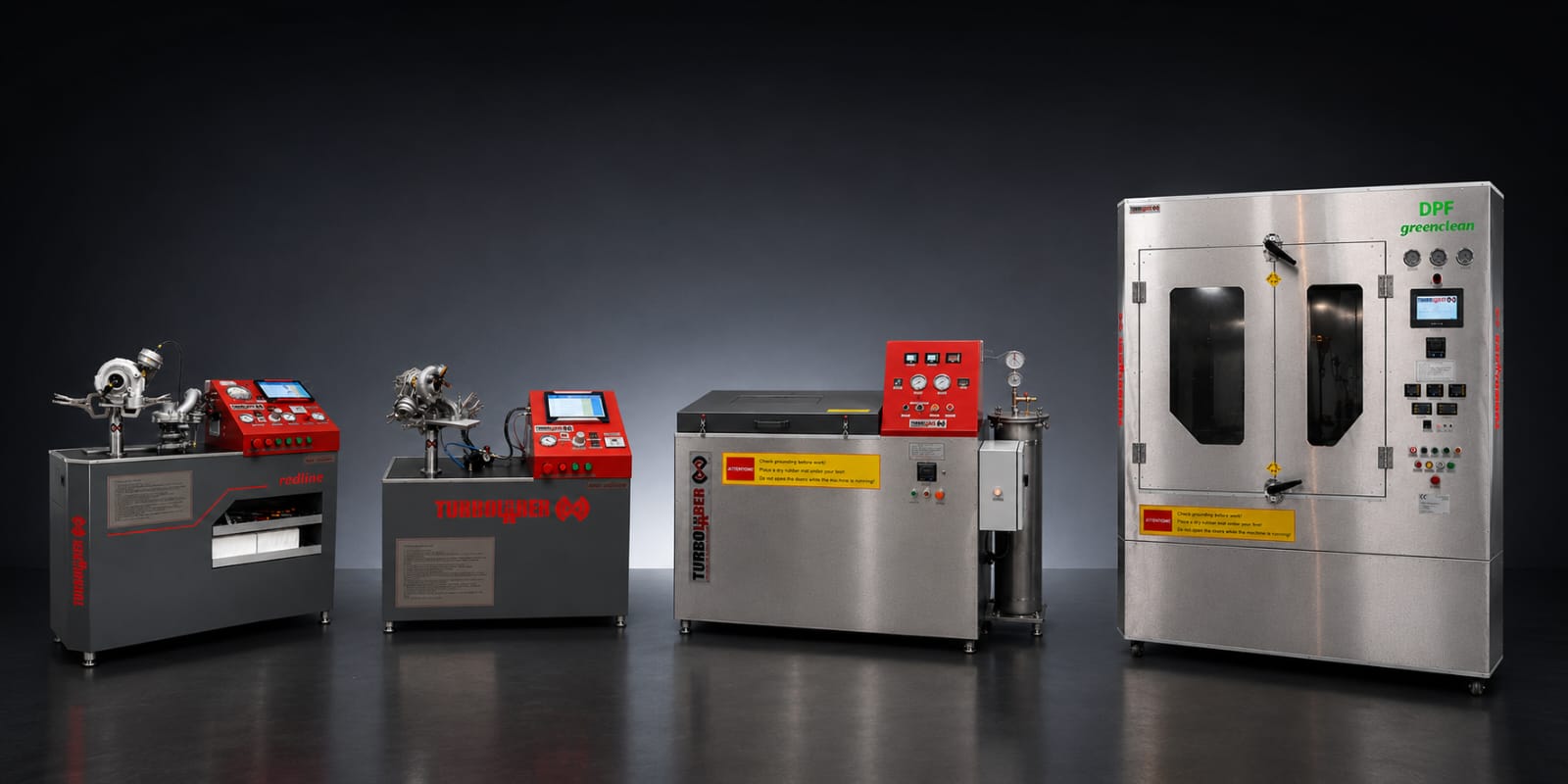

THE EQUIPMENT RANGE
DPF & parts cleaning / VNT calibration / CHRA leak testing
Explore DPF cleaning machines, automatic parts washing and turbocharger calibration benches. Ask our UK team about configuration, pricing and availability.

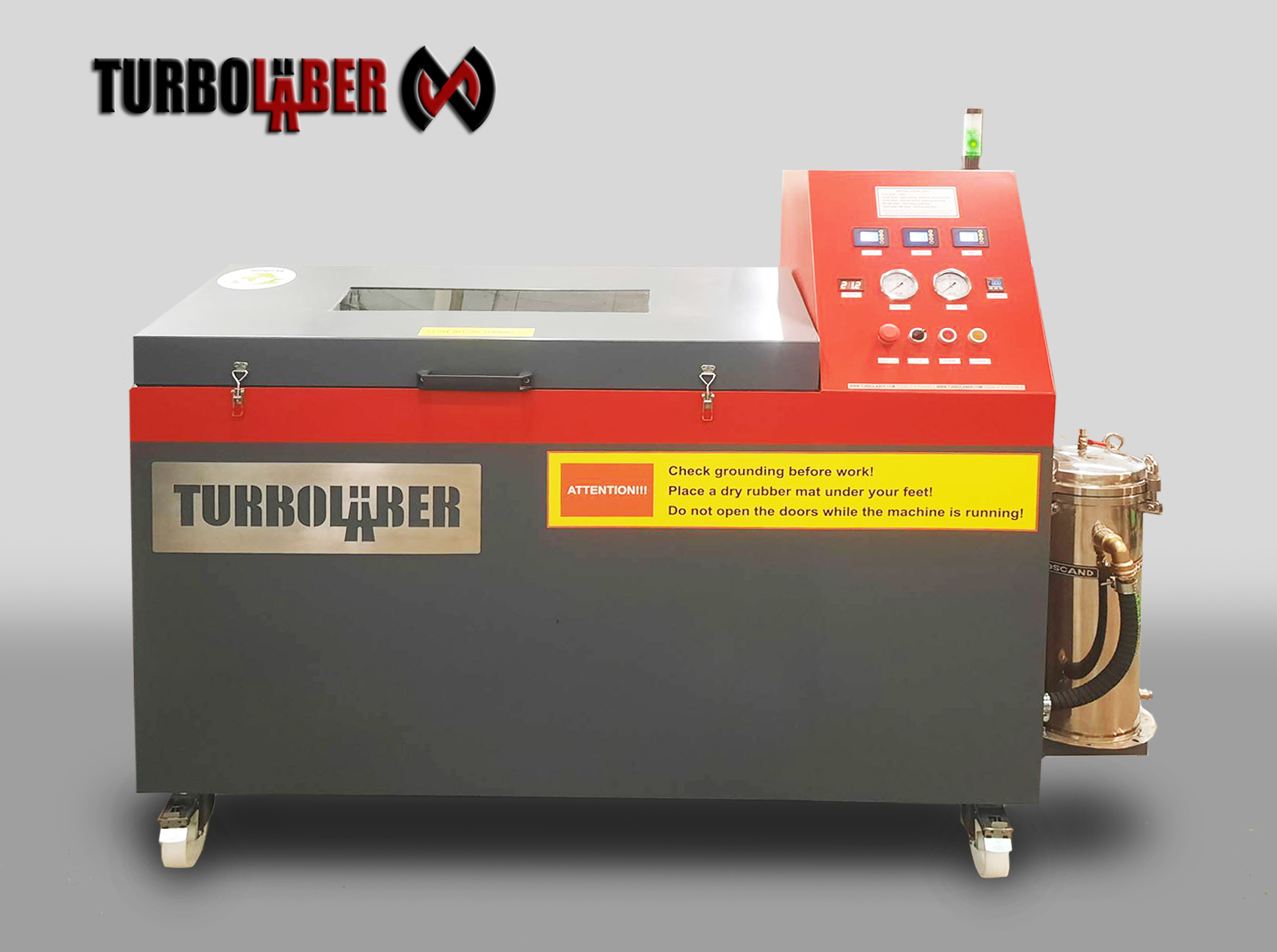

COMPACT DPF CLEANING
Compact equipment for cleaning particulate filters and catalysts from diesel and petrol engines, with automatic diagnostics, cleaning and hot-air drying.
HEAVY-DUTY DPF CLEANING
Cleaning, drying and reporting for passenger-car filters and heavy-duty filter cartridges used in agricultural and construction machinery.

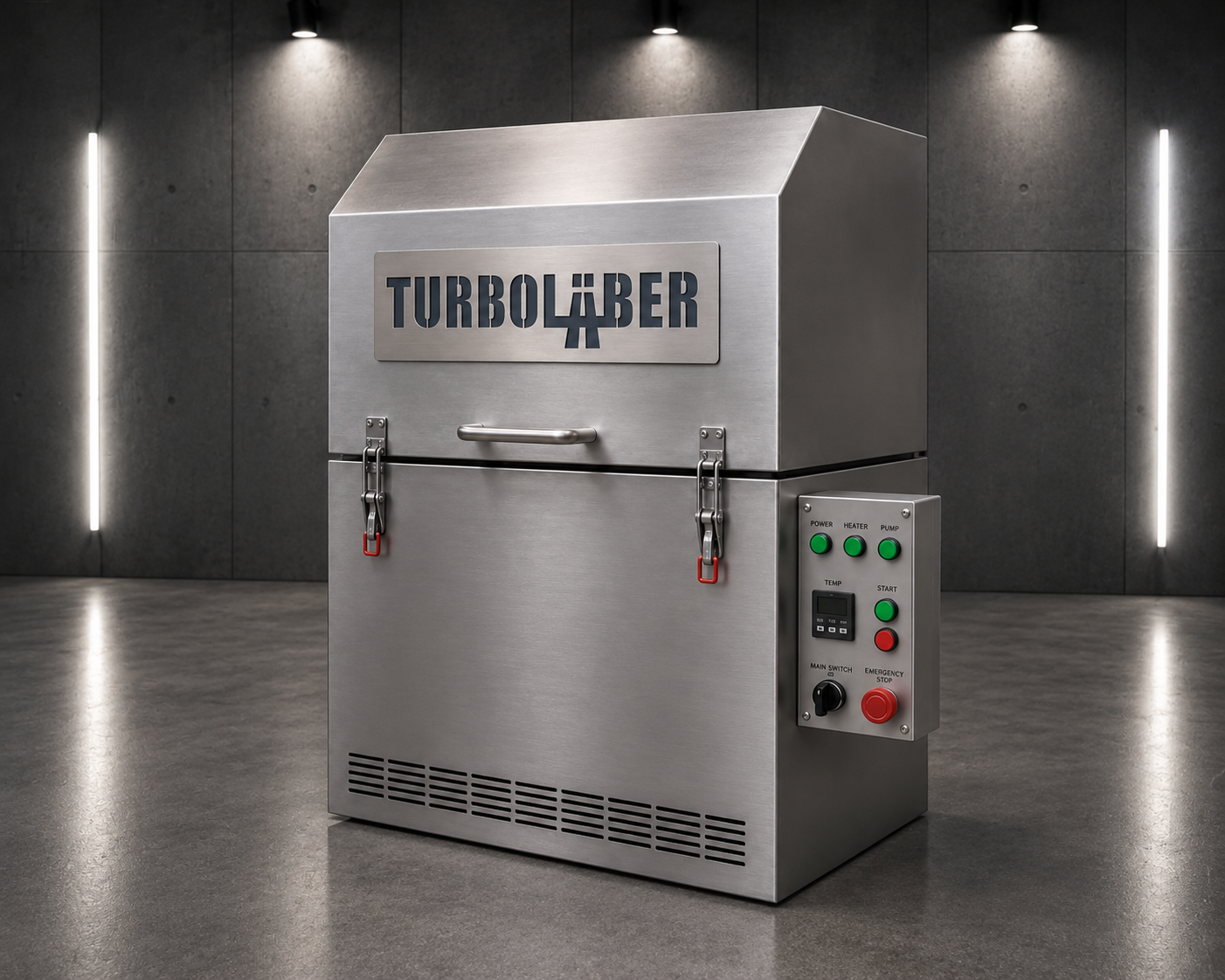

AUTOMATIC PARTS CLEANING
An automatic parts washer for metal and plastic components, using multiple water jets with integrated filtration and recirculation.

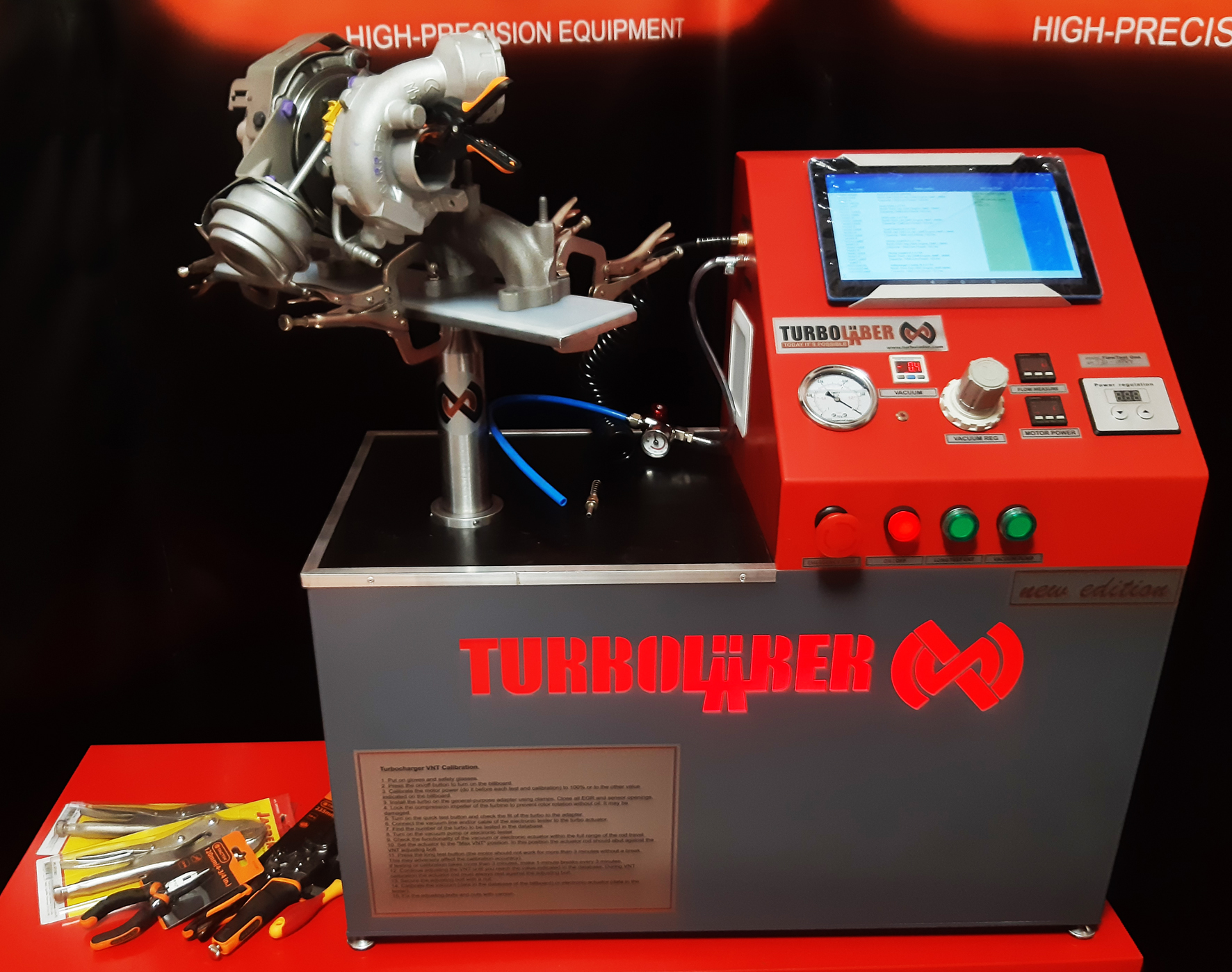

COMPACT VNT CALIBRATION
A compact flow bench for diagnosing and calibrating variable-geometry turbochargers and vacuum actuators.
Electronic actuator testing requires a separate tester, which is not included as standard.

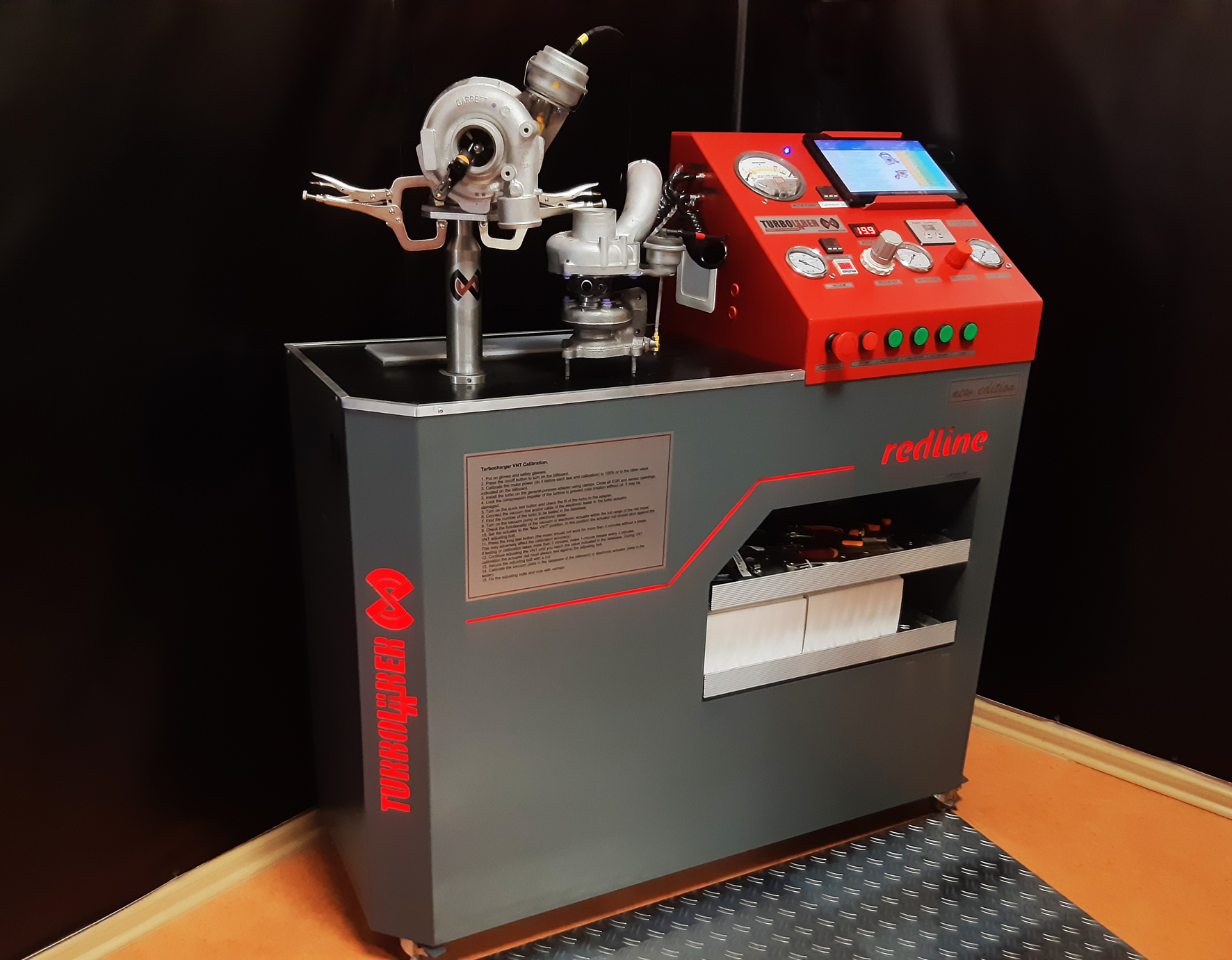

VNT & PRESSURE-VALVE CALIBRATION
A turbocharger flow bench that adds pressure-valve calibration and analogue readouts to VNT and vacuum actuator testing.
Electronic actuator testing requires a separate tester, which is not included as standard.

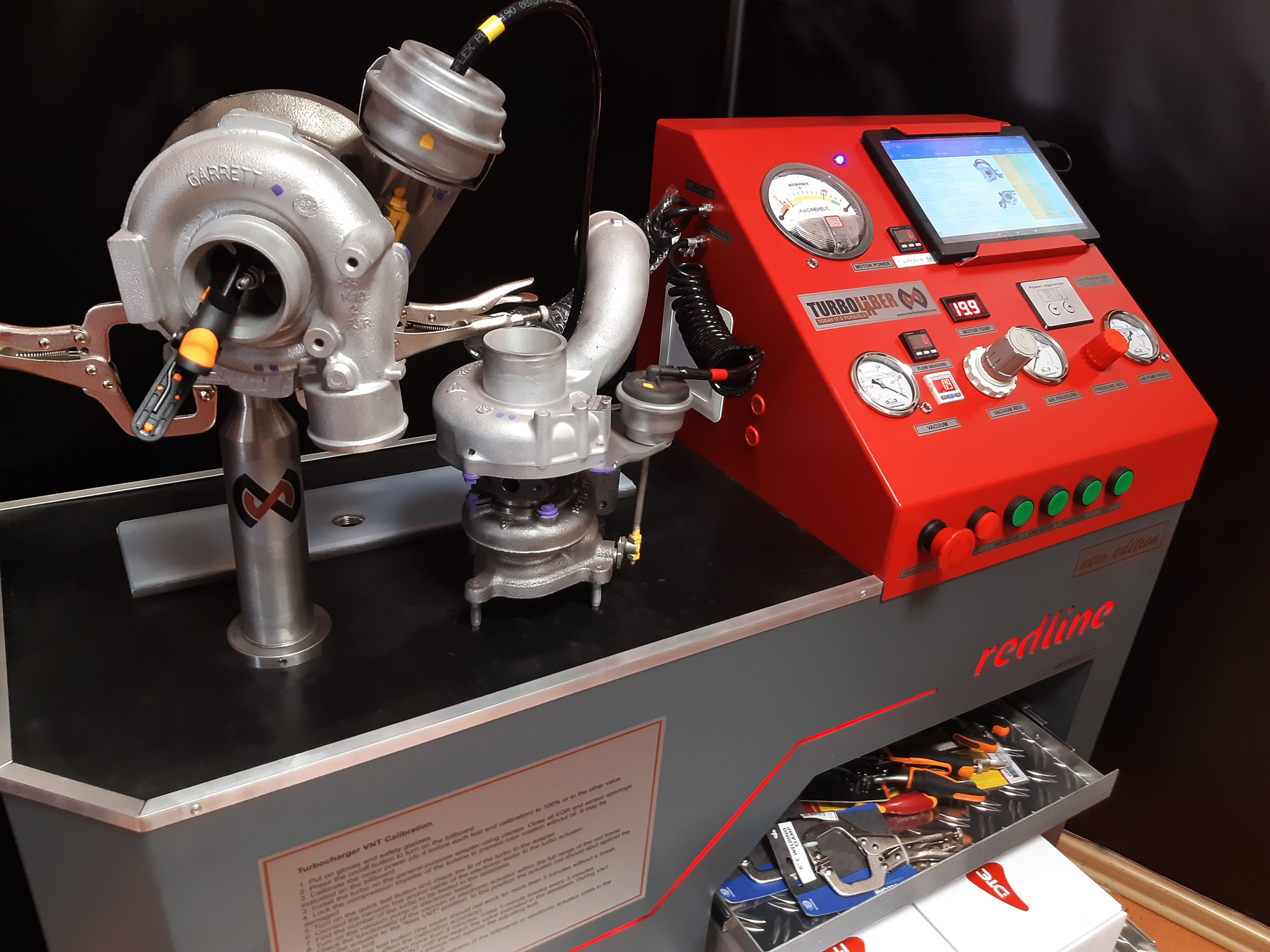

VNT CALIBRATION & OIL-LEAK TESTING
The most comprehensive model in this range, combining VNT and actuator calibration with an oil-leak test function.
Electronic actuator testing requires a separate tester, which is not included as standard.
Product information is based on TurboLaber’s model pages and technical documentation. Your UK quotation will confirm the specifications and included accessories.
TURBOCHARGER FLOW BENCHES
All three benches use stabilised airflow and differential-pressure measurement for VNT diagnostics and calibration. Choose the additional functions that suit your workshop.
| Feature | Flowtest One | Redline 3001 | Redline 3011 |
|---|---|---|---|
| VNT diagnostics & calibration | Included | Included | Included |
| Vacuum actuator diagnostics & calibration | Included | Included | Included |
| Electronic actuator diagnostics & calibration | Separate tester required | Separate tester required | Separate tester required |
| Pressure-valve calibration | Not included | Included | Included |
| Oil-leak test | Not included | Not included | Included |
| Analogue readouts | Not included | Included | Included |
| Adapters | 4 | 4 | 10 |
| Universal fasteners & clamps | 12 | 12 | 12 |
| Online database updates | Included | Included | Included |
| Electrical supply (manufacturer’s specification) | 220 V / 6 A | 220 V / 10 A | 220 V / 16 A |
| Machine weight | 60 kg | 100 kg | 110 kg |
Optional electronic actuator tester. A separate tester is required for electronic actuator diagnostics and calibration on every model. It is not included as standard and can be added to your quotation.
Specifications are based on the manufacturer’s flow bench brochure. Your UK quotation will confirm the electrical configuration, accessories and availability.
01 / FEATURED EQUIPMENT
Diagnostics. Cleaning. Drying. Reporting.

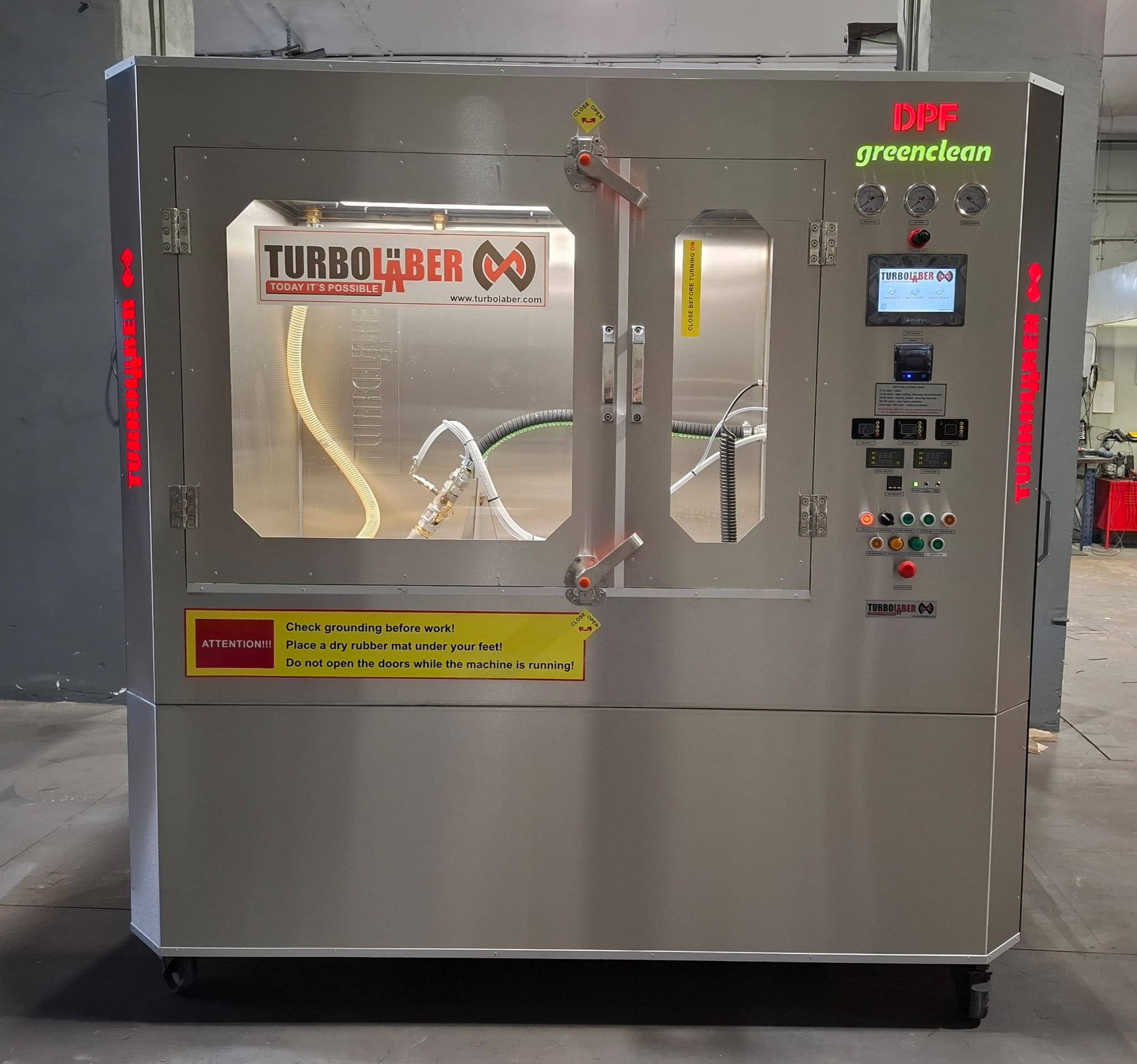

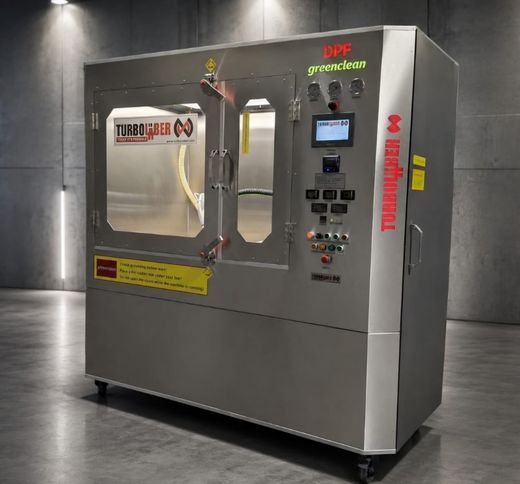

DPF Greenclean TruckDPF / FAP / CATALYSTS
One machine. From passenger cars to heavy-duty filters.

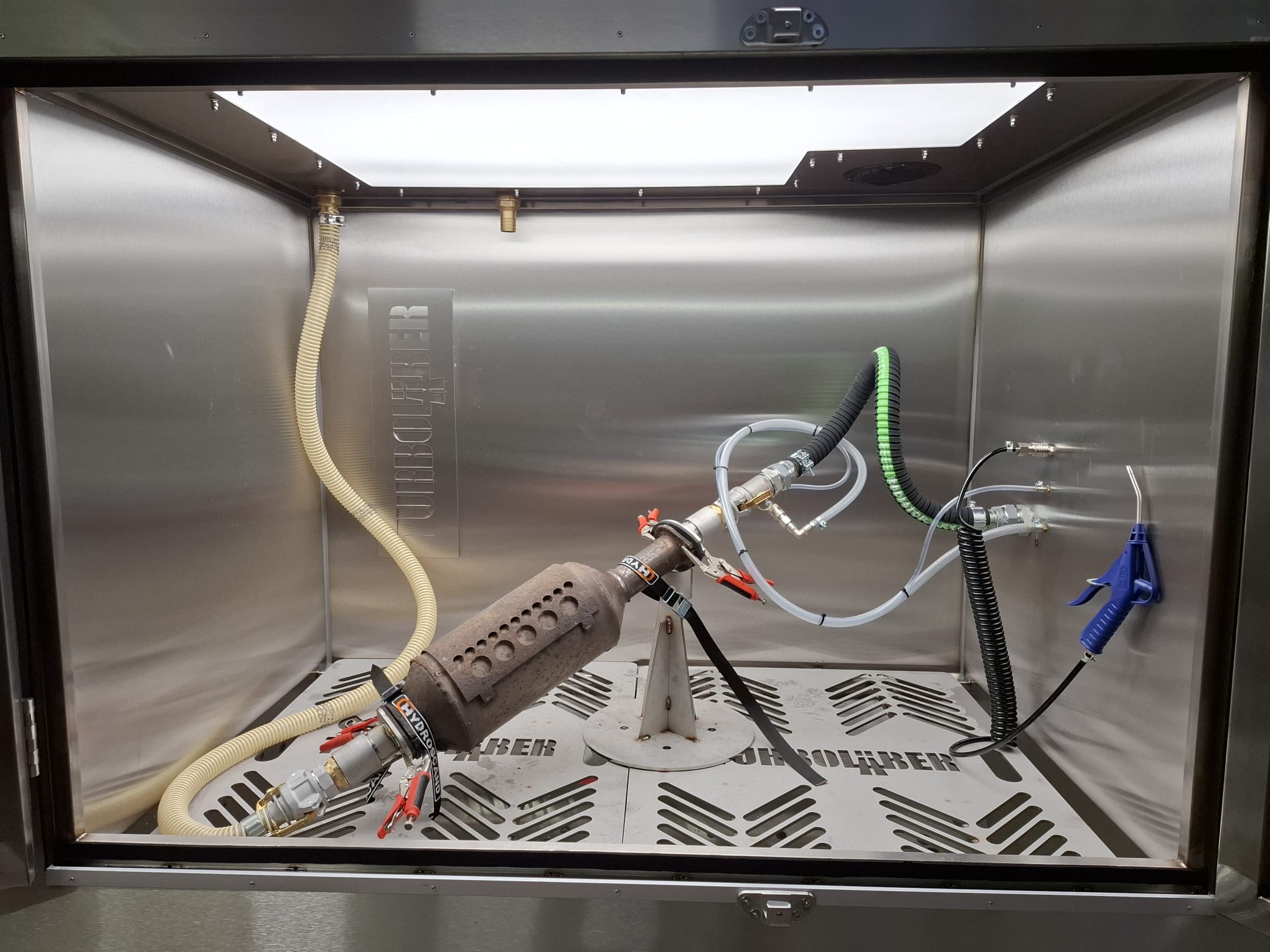

Clean particulate filters and catalysts in an enclosed stainless-steel chamber, with automatic or semi-automatic operation. A dedicated cartridge-cleaning module extends the machine’s capability to trucks, agricultural machinery and construction equipment.
Your quotation will confirm the machine configuration, lead time and pricing.
Maximum DPF length, including pipework
Water tank capacity
Manufacturer-stated drying time
Automatic & semi-automatic operation
02 / INSIDE THE MACHINE

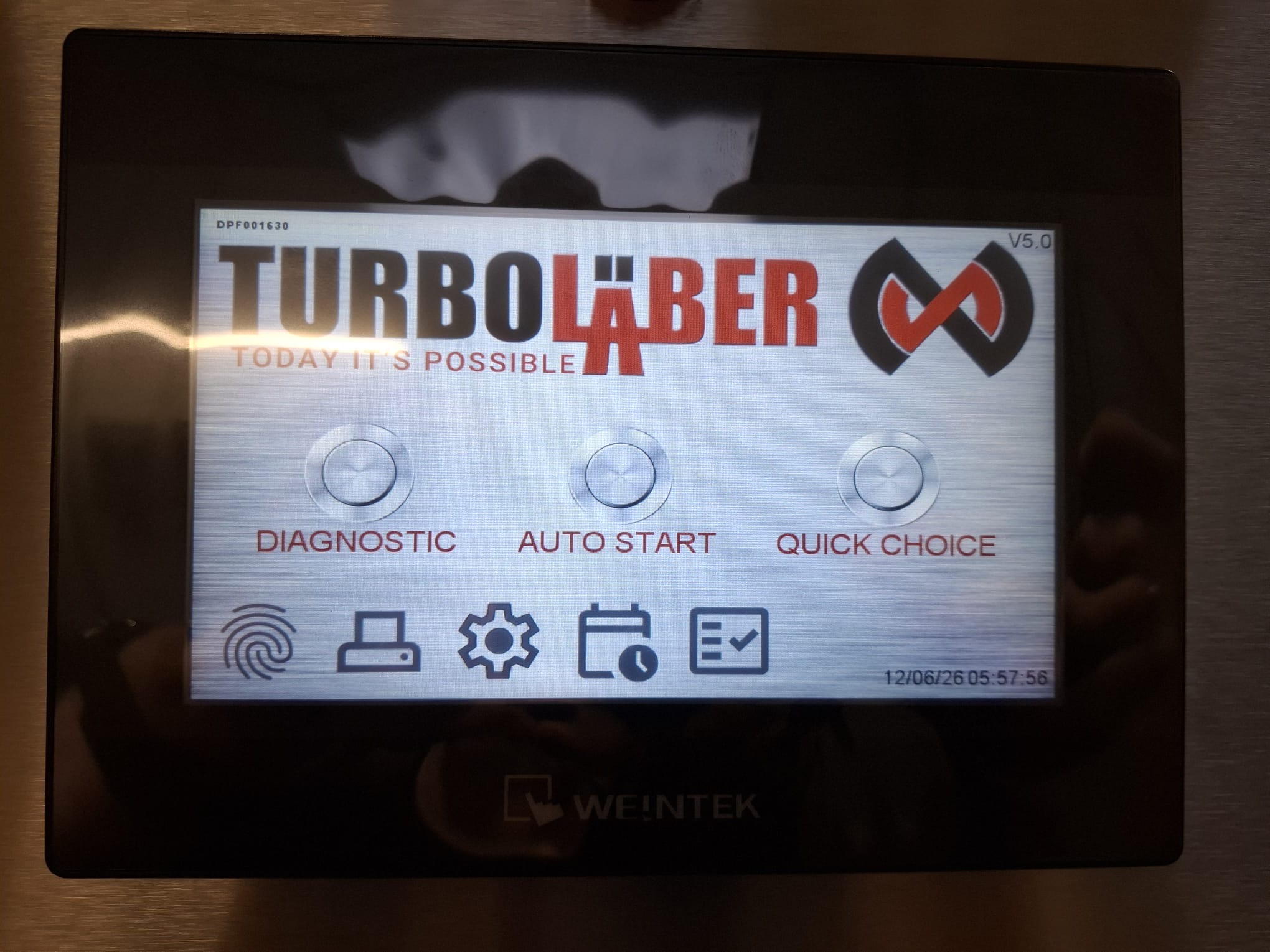

CONTROL AT EVERY STAGEAssess the filter, select the cleaning cycle, dry it and document the result. All from the machine’s control panel.

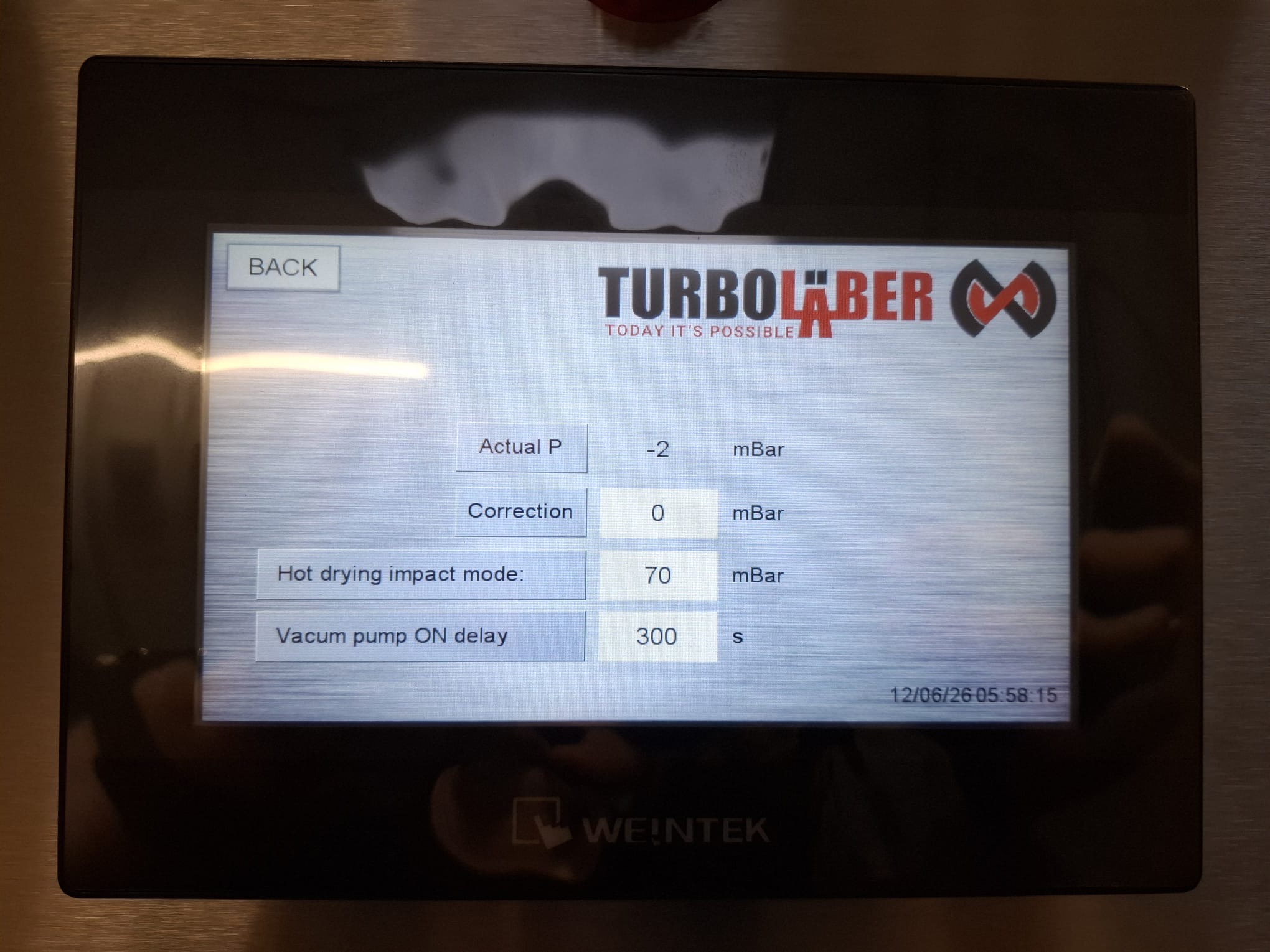

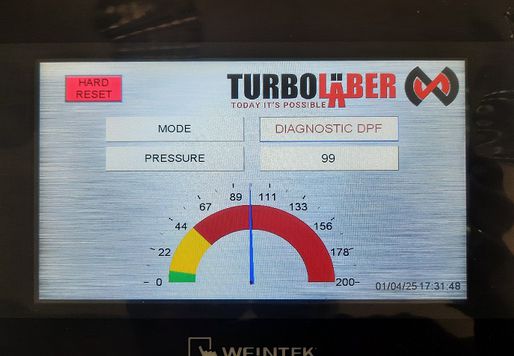

Measure filter restriction in millibars and record its condition before cleaning.
Choose automatic cleaning with chemical dosing, or adjust the time and intensity in semi-automatic mode.
Remove residual solution with compressed air, then use hot-air, hot-injection and vacuum drying. The manufacturer states 30–60 minutes for drying; this is not the total cleaning cycle.

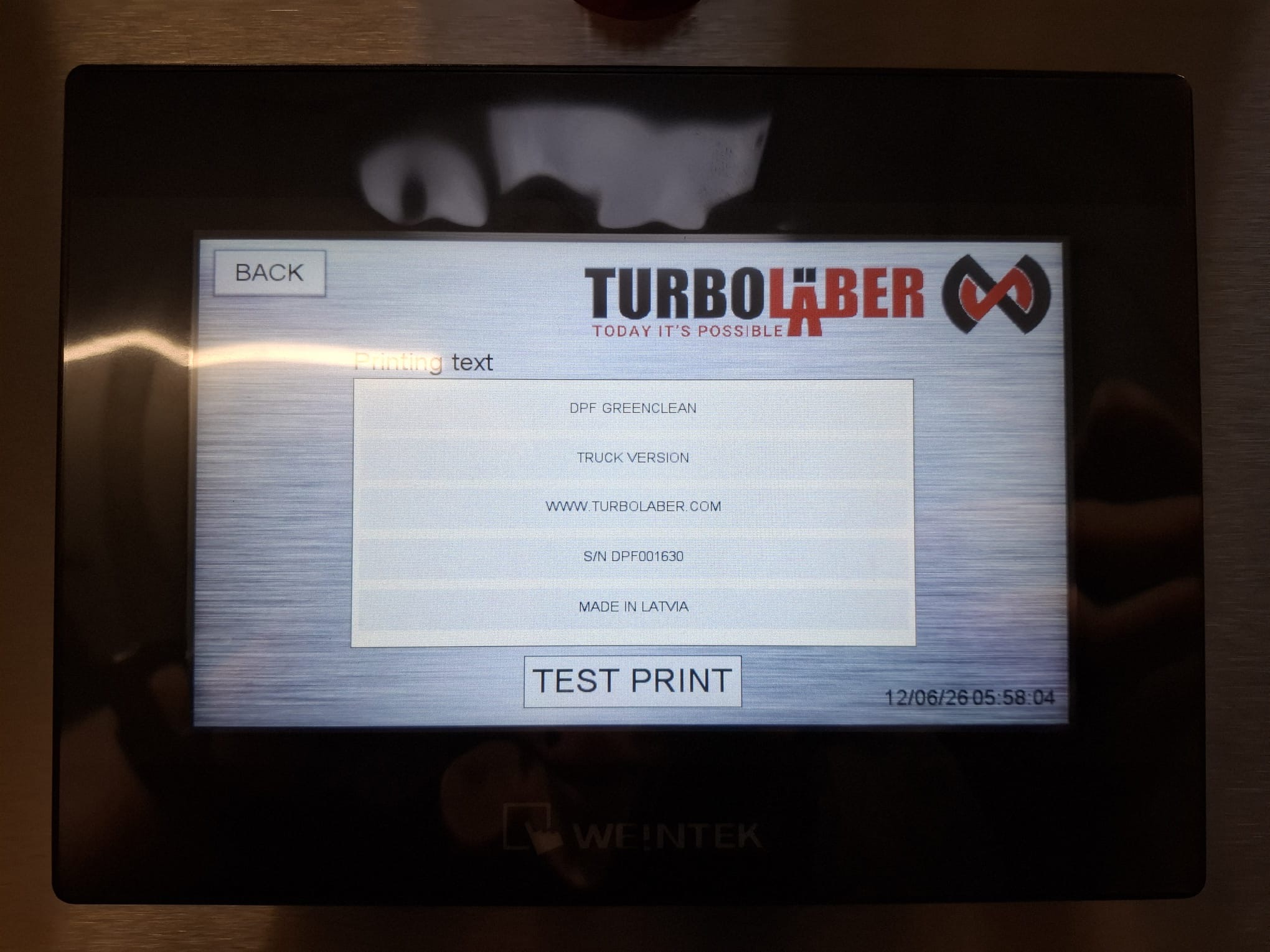

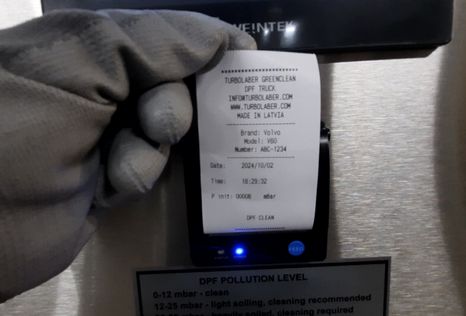

Print the before-and-after results with your business and vehicle details.
A recirculating system with coarse and fine filtration. No permanent water or drainage connection is required for operation.
Schedule tank heating in advance. Temperature monitoring and low-water protection support day-to-day operation.
Wi-Fi supports remote diagnostics and free automatic updates. Power-loss protection saves the current mode and resumes cleaning when power returns.
03 / TECHNICAL DATA
Plan your workshop space, electrical supply and compressed-air connection.
Download the manufacturer’s brochureEquipment supplied in the UK comes with a 2-year warranty, even where the manufacturer’s brochure states a different term. Your quotation will confirm the warranty coverage.
| Overall dimensions (W × H × D) | 2,100 × 2,000 × 1,100 mm |
|---|---|
| Weight without water | 750 kg |
| Maximum DPF weight | 500 kg |
| Maximum DPF length, including pipework | 1,700 mm |
| Water tank | 350–500 litres |
| Electrical supply | 400 V three-phase 230 V single-phase option on request |
| Peak power | 6 kW |
| Water heating | 25–45 °C |
| Hot-air drying | 60–90 °C |
| Drying system | Four stages, including vacuum |
| Drying time | 30–60 minutesManufacturer-stated drying time, excluding cleaning |
| Adjustable air pressure | 1–8 bar |
| Minimum external compressor capacity | 150 litres/minute |
| Maximum compressed-air pressure | 10 bar |
| Built-in air receiver | 40 litres |
| Water pump flow | 50–300 litres/minute |
| Working chamber and front panel | 304L stainless steel |
| Water & drainage connection | No permanent connection required |
| Operating modes | Automatic / semi-automatic |
| Reporting & connectivity | Printed reports / Wi-Fi |
Specifications are based on the supplied vacuum-model brochure (V 1.7.7-1). Confirm the selected configuration and installation requirements before ordering. Dimensions include door handles and wheels.
04 / UK CLEANING ENQUIRIES
For workshops, fleet operators and vehicle owners.
Contact KP Car Care to discuss cleaning DPFs, catalysts or AdBlue residue. Send the vehicle details and a photograph of the removed filter so we can discuss suitability, pricing and availability.
Ask about collection and return options for your workshop.
Enquire about DPF cleaningBEFORE YOU ENQUIRE

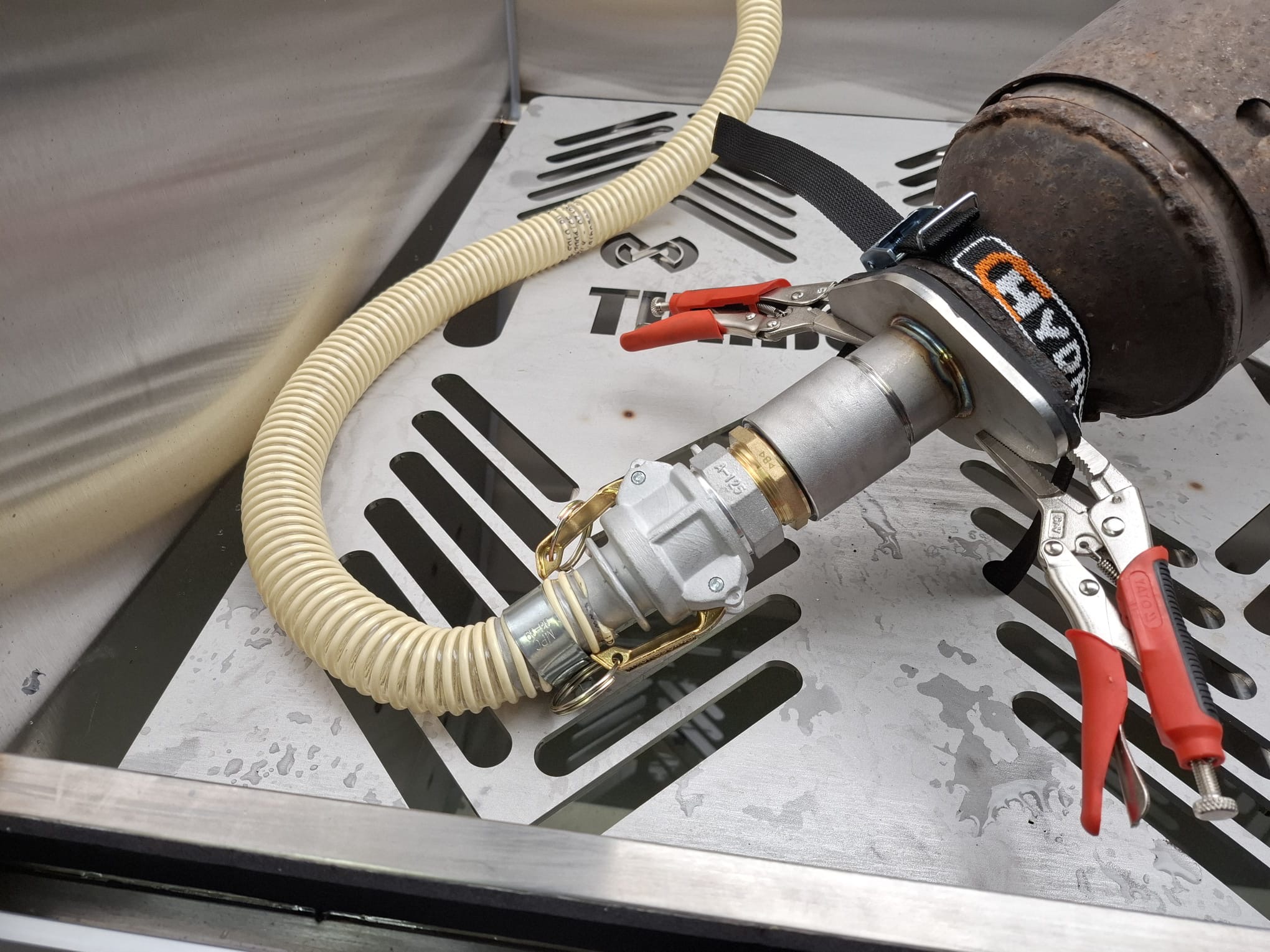

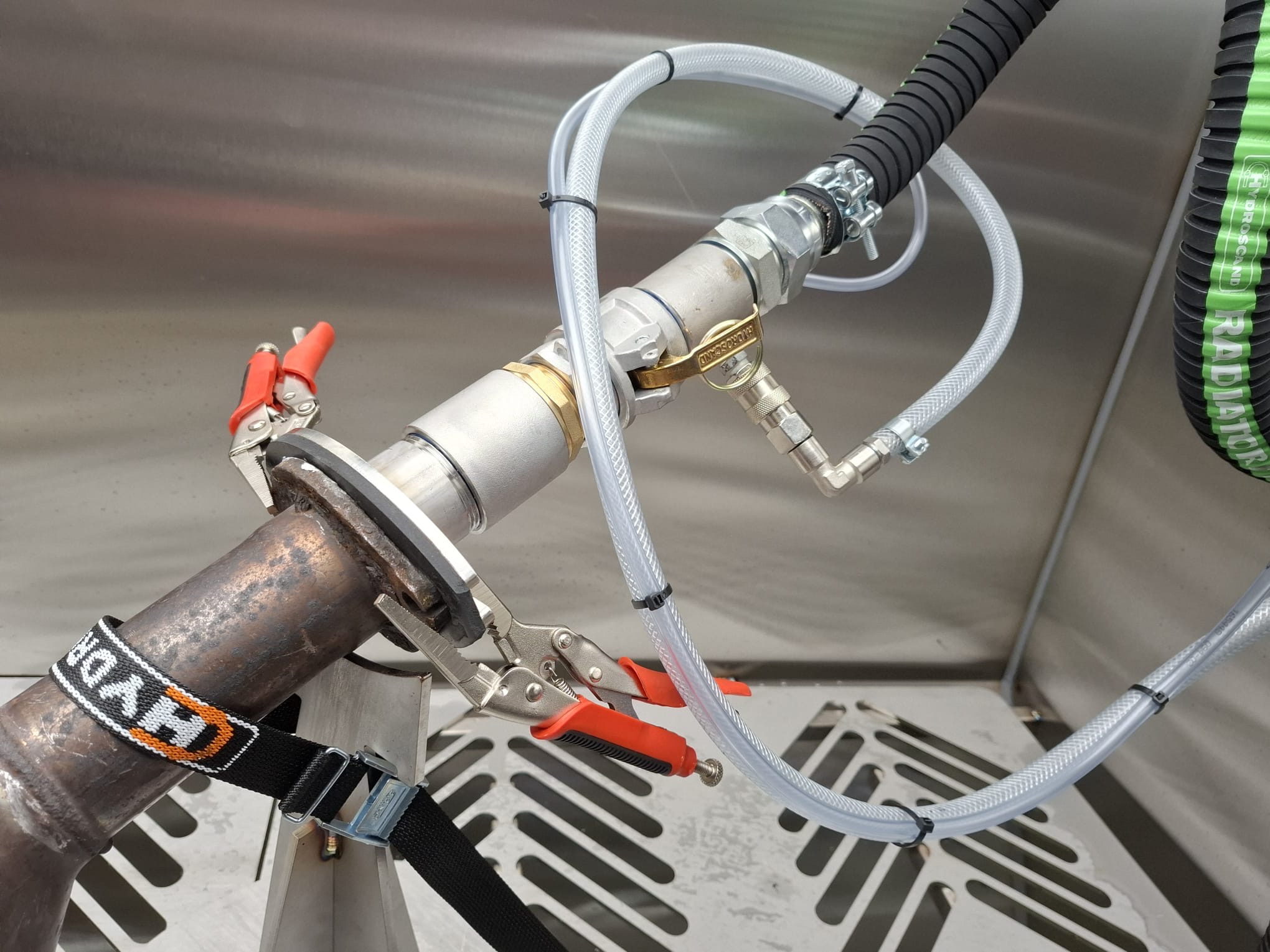

Yes. The manufacturer describes the DPF Greenclean Truck as suitable for passenger-car DPFs and catalysts, alongside heavy-duty cartridge filters. Send us your filter type and dimensions to confirm the right connection and setup.
The supplied vacuum-model brochure lists 20 connection adapters, plus cleaning concentrate and filter elements for 200 cleaning cycles. Your UK quotation will confirm the exact accessories and consumables included with your selected configuration.
The manufacturer states 30–60 minutes for the four-stage drying process, including vacuum drying. This is the drying stage only; allow additional time for diagnosis, cleaning and handling.
The standard technical sheet lists a 400 V three-phase supply. A 230 V single-phase configuration is available on request. We will confirm the electrical requirements for your selected machine before ordering.
Contact our UK team with your business name, postcode, typical filter types and electrical supply. We will discuss a suitable configuration and provide a quotation with delivery details.
